XCMG 25 Ton Mobile Crane（QY25K5D-5 ） Engineered for Precision, Built for Speed, immediate delivery

Name: XCMG 25 Ton Mobile CraneQY25K5D5 Engineered for Precision Built for Speed immediate delivery
Brand: XCMG
Price: 35000 USD

Buy cheap XCMG 25 Ton Mobile Crane（QY25K5D-5 ） Engineered for Precision, Built for Speed, immediate delivery product

Brand Name : XCMG

Model Number : QY25K5D-5 25-Ton Mobile Crane

Place of Origin : China

MOQ : 1

Price : USD35000 - USD80000 EXW

Payment Terms : ,L/C,D/P,T/T

Delivery Time : in two weeks

Packaging Details : Bulk Cargo Shipping

Contact Now

Key Features & Configurations

Category	Item	Unit	Parameter
Dimensions	Overall Dimensions (L×W×H)	mm	13050×2550×3500
	Wheelbase	mm	4600+1350
	Front Overhang / Rear Overhang	mm	2376 (Xugong Automobile) / 2389 (Qixing) / 2440, Front Projection / Rear Projection: 1624 (Xugong Automobile) / 161 1 (Qixing) / 660
Weight	Maximum Allowable Gross Mass	kg	31600
	Axle Load	kg	Front Axle: 6800, Middle Axle: 12400, Rear Axle: 12400
Power	Engine Model	-	SC7H300Q6P
	Rated Power / Speed	kW/(r/min)	220/2200
	Maximum Net Power / Speed	kW/(r/min)	218/2200
	Maximum Output Torque / Speed	N.m/(r/min)	1280/1200-1500
Driving	Maximum Speed	km/h	≥80
	Minimum Stable Speed	km/h	2.5～3
	Minimum Turning Diameter	m	≤21
	Boom Tip Minimum Turning Diameter	m	≤25.8
	Minimum Ground Clearance	mm	250
	Approach Angle	°	12
	Departure Angle	°	12
	Braking Distance (Initial Speed 30km/h)	m	≤10
	Maximum Gradeability	%	≥40
	Fuel Consumption per 100 km	L	30
Electric Drive	Motor Power (Rated/Peak)	kW	60/11 0
	Motor Torque (Rated/Peak)	N.m	380/800
	External Power Supply Voltage (AC)	V	380
Main Performance	Maximum Rated Total Lifting Capacity	t	25
	Minimum Rated Working Radius	m	3
	Tail Swing Radius (at Counterweight)	mm	3850
	Maximum Lifting Moment	kN.m	Basic Boom: 1063, Max Main Boom: 672, Max Main Boom + Jib: 491
	Outrigger Span	m	Longitudinal: 5.5, Transverse: 6.4
Lifting Height	Hoist Height (Basic Boom)	m	10.4
	Hoist Height (Max Main Boom)	m	40.5
	Hoist Height (Max Main Boom + Jib)	m	47.4
Boom Length	Boom Length (Basic)	m	10.5
	Boom Length (Max Main Boom)	m	41.0
	Boom Length (Max Main Boom + Jib)	m	49.3
	Jib Installation Angle	°	0
Operating Speeds	Boom Raising Time	s	≤38
	Boom Fully Extended Time	s	≤9 3
	Maximum Slewing Speed	r/min	≥2.5
	Outrigger Deployment/Retraction Time (Horizontal)	s	Deployment: ≤40, Retraction: ≤20
	Outrigger Jack Deployment/Retraction Time (Vertical)	s	Deployment: ≤40, Retraction: ≤20
	Hoisting Speed (Single Line, 4th Layer, No Load)	m/min	Main Hoisting Mechanism: ≥125, Auxiliary Hoisting Mechanism: ≥125

Configuration Highlights

✅ Power & Mobility

Engine: 220 kW SC8DK280Q3 engine (2,200 rpm) with 80 km/h max speed and 40% gradeability for rapid site transfers.
Chassis: Compact 3-axle design (12m × 2.5m × 3.38m) with 11m turning radius for urban maneuverability.

✅ Lifting Performance

Boom: 41m 5-section U-shaped main boom (extends in 150s) + 8.5m jib, achieving 40.7m lifting height.
Capacity: 25-ton max load, 961 kN·m rated torque, and 0.8t lifting at 32m radius for complex tasks.
Stability: 5.14m × 6m outrigger span and multi-stage buffering system for precise, vibration-free operation.

✅ Smart Features

Control System: Auto-balancing panel with one-touch telescoping and anti-sway algorithms.
Durability: Reinforced boom cross-section (10% thicker) and corrosion-resistant coating.

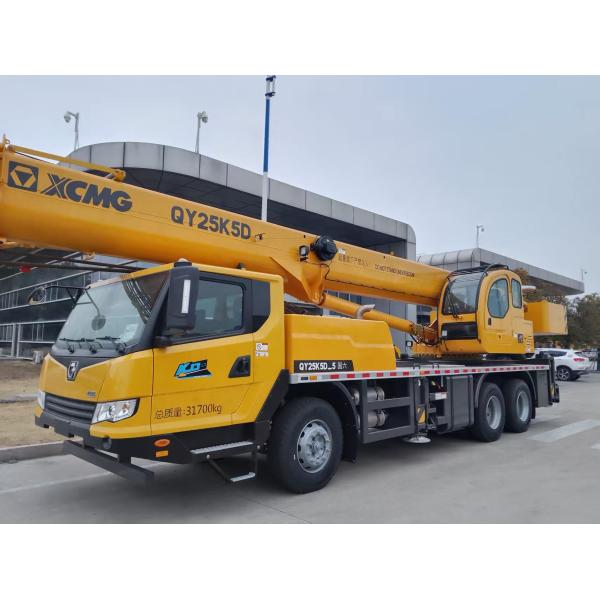

Photo Details

XCMG 25 Ton Mobile Crane（QY25K5D-5 ） Engineered for Precision, Built for Speed, immediate delivery

Company Profile

XCMG 25 Ton Mobile Crane（QY25K5D-5 ） Engineered for Precision, Built for Speed, immediate delivery

1:What are your main export construction machineries?
A:Used concrete mixer truck,Used trailer concrete pump,Used concrete line pump,Used Truck mounted concrete pump,Concrete batching plant,used cranes,used excavators,used road machinery, used piling machinery and so on.Ranging second-hand original machineries to refurbished machineries .

2:Is your company a factory or a trader?
A:We are re-manufacturing factory with a big used construction machinery trading platform.we specialize in construction machinery wholesale and concrete machinery re-manufacturing for more than 13 years.

3:What are the advantages of re-manufacturing machineries and what quality of your refurbished machineries?
A:The big advantage is price of used machine,value of new machine.We set the highest maintenance and re-manufacturing standard system,strictly inspect and repair according to the standard,Our each re-manufacturing will go through 14 processes from admission test to final inspection to make sure the best quality.

4:How do I know the condition of the original used or re-manufacturing concrete pump truck?
A: We will provide a video of the specifications and the test of the pump truck before we ship to you.

5:What is the minimum order quantity for your used machinery?
A: The MOQ is 1 unit
